Siwenoid V2 graphical security management software built on the success of its predecessor V1 and optimized for the latest trends in management station architecture.
Features at glance

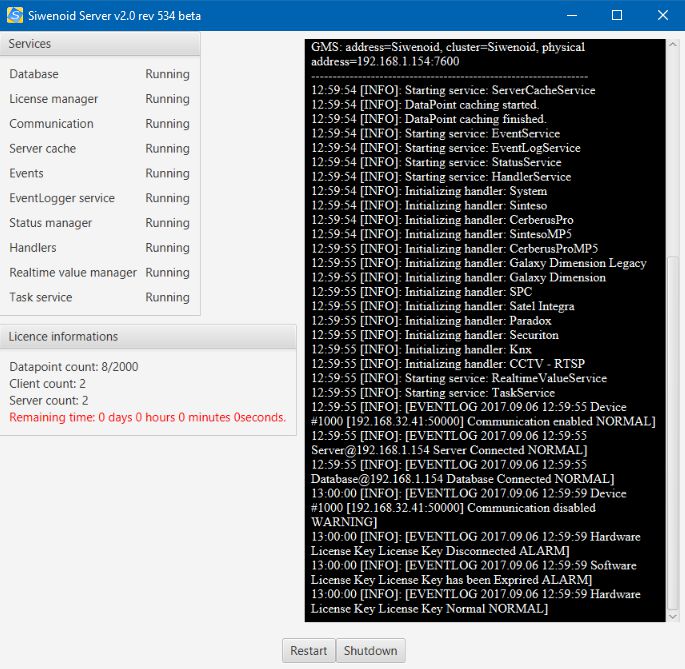

Server – Client application
Siwenoid is a server – client application. Server and the client can be on the same computer.
Multiple servers and clients can be synchronized for redundancy.
Easy to use user interface
Scalable and resizeable views, multiple monitor configuration. Map zoom & pan. Icon multiselect and operation on the map.

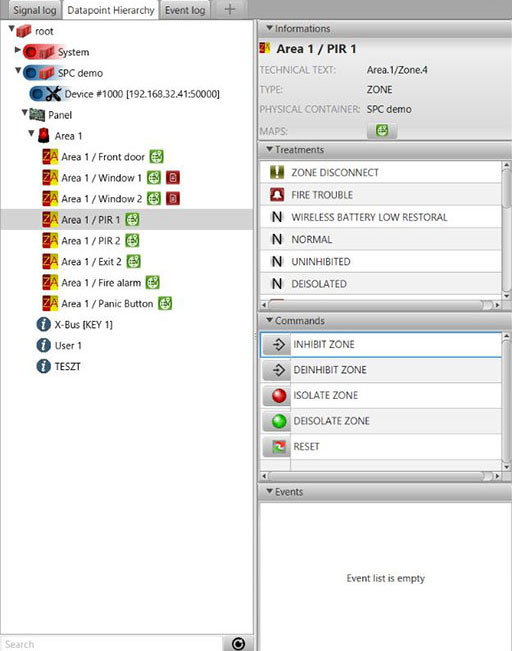

Clear view of datapoints
Datapoints (sensors, zones etc.) are arranged in tree view, with clear color coding according to it’s events categories. All possible status and commands are available in a command table or in popup menu. You can send commands to datapoints, check their status and manage and move them into any parent-child hierarchy.

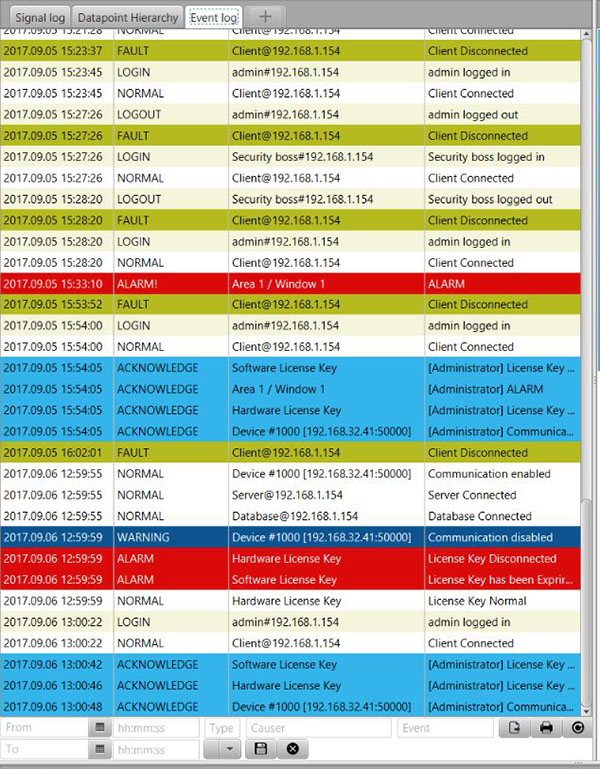

Event log
The event log records all events in the database. Searchable, printable and exportable to XLSX, CSV or interactive HTML format. Event simulation is also possible for training purpose.

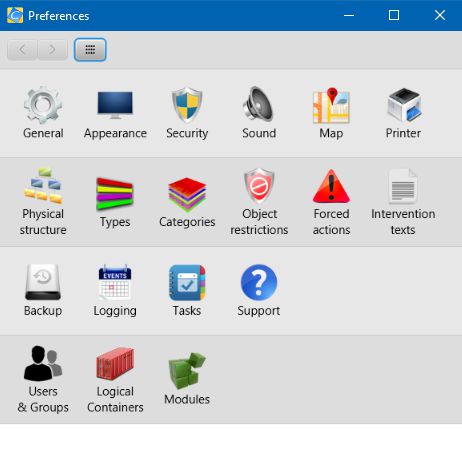

Customization
GUI layout, colors, icons, behavior of datapoints can be modified. Live configuration, without interuption in subsystem communication. User permission dependent setting options.

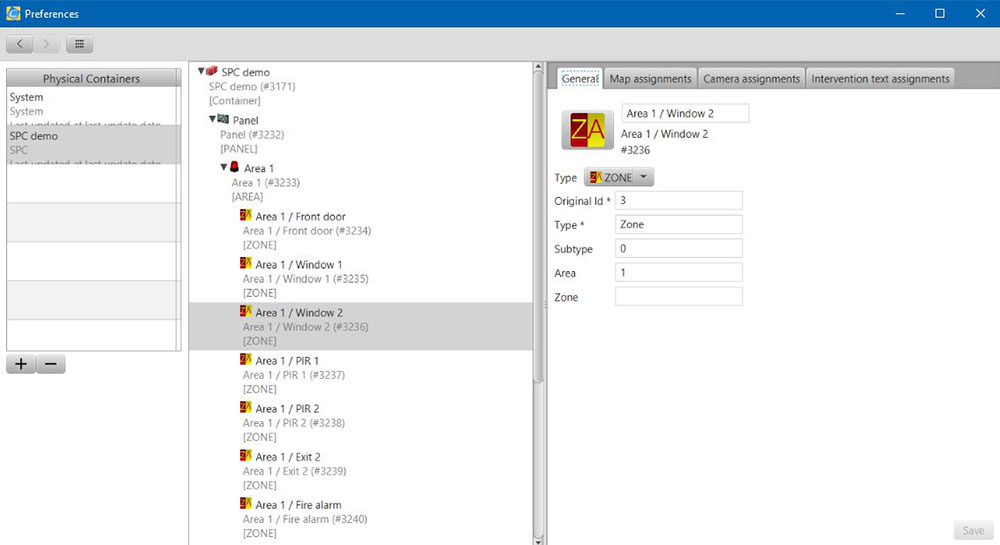

Manage the physical structure easily
Each connected subsystem can be edited and managed individually, even when the subsystem is connected and online. Easy-to-understand, clear hierarcy represents the physical systems (fire alarm units, intrusion detection systems etc.)

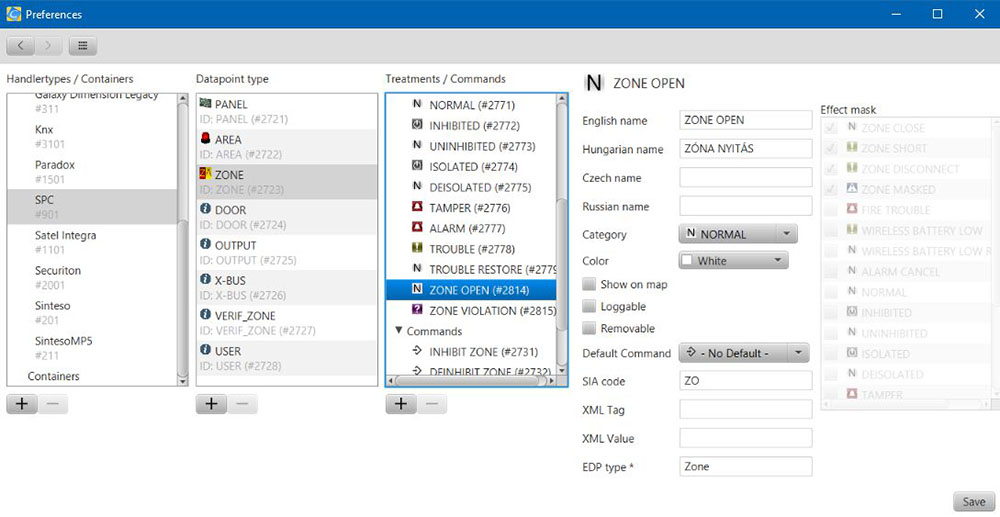

Edit behavior of the datapoints
Each integrated system handlers (like SPC intrusion panel and more) can be managed and edited. You can edit the commands, status, color, message text and behavior of the datapoints.
Make operation easy

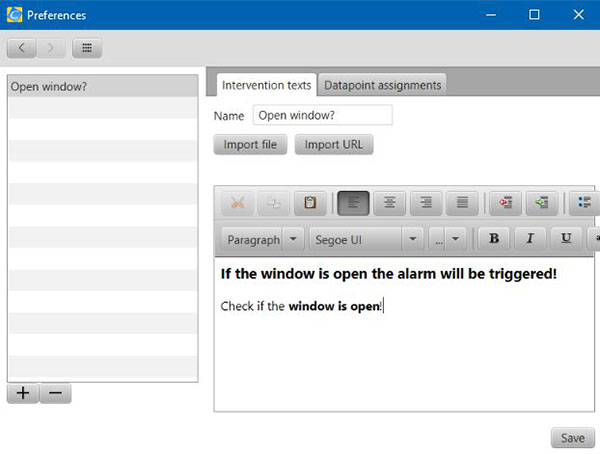

Intervention texts can be assigned to any datapoint to assist operator in case of alarm. Intervention texts can be refreshed from online sources, can be assigned to any number of datapoints. Every datapoint can be assigned to any number of intervention texts.

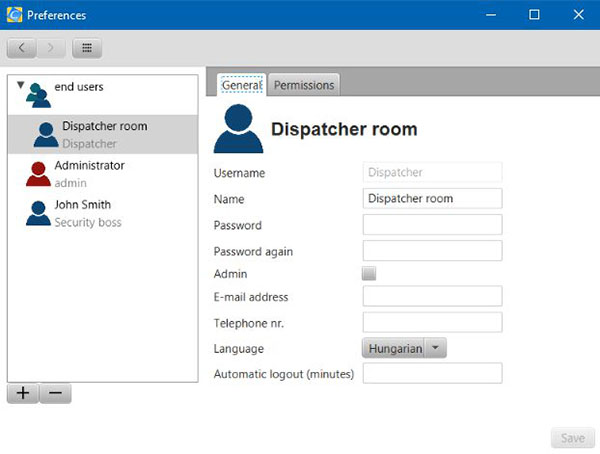

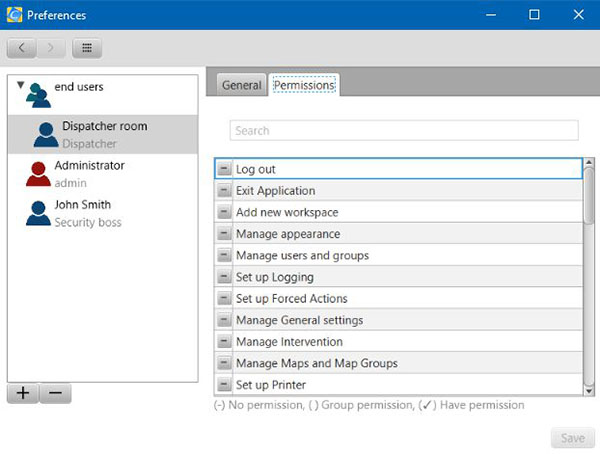

Extended user permission
Users can be assigned to permissions. Permissions limit the access to a certain set of datapoints, commands and user interface elements. Multi-language: the language of the user interface can be set for each user individually.
Flexible and versatile user definitions
User groups:
Every user of the group inherits group permissions
Users:
Every user can have their own permissions with allowance and restrictions

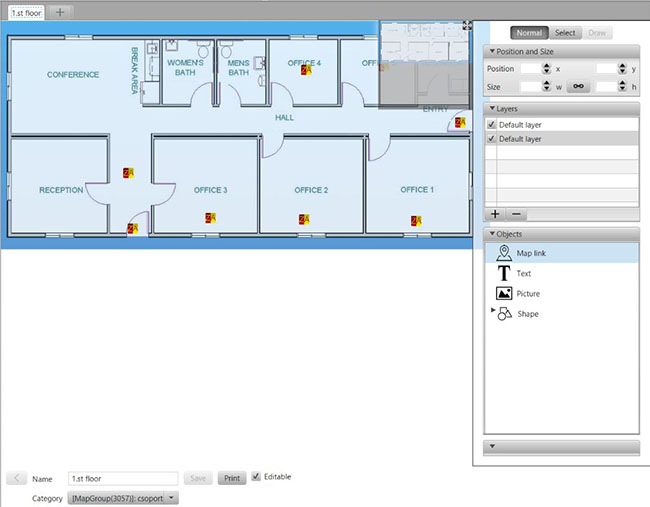

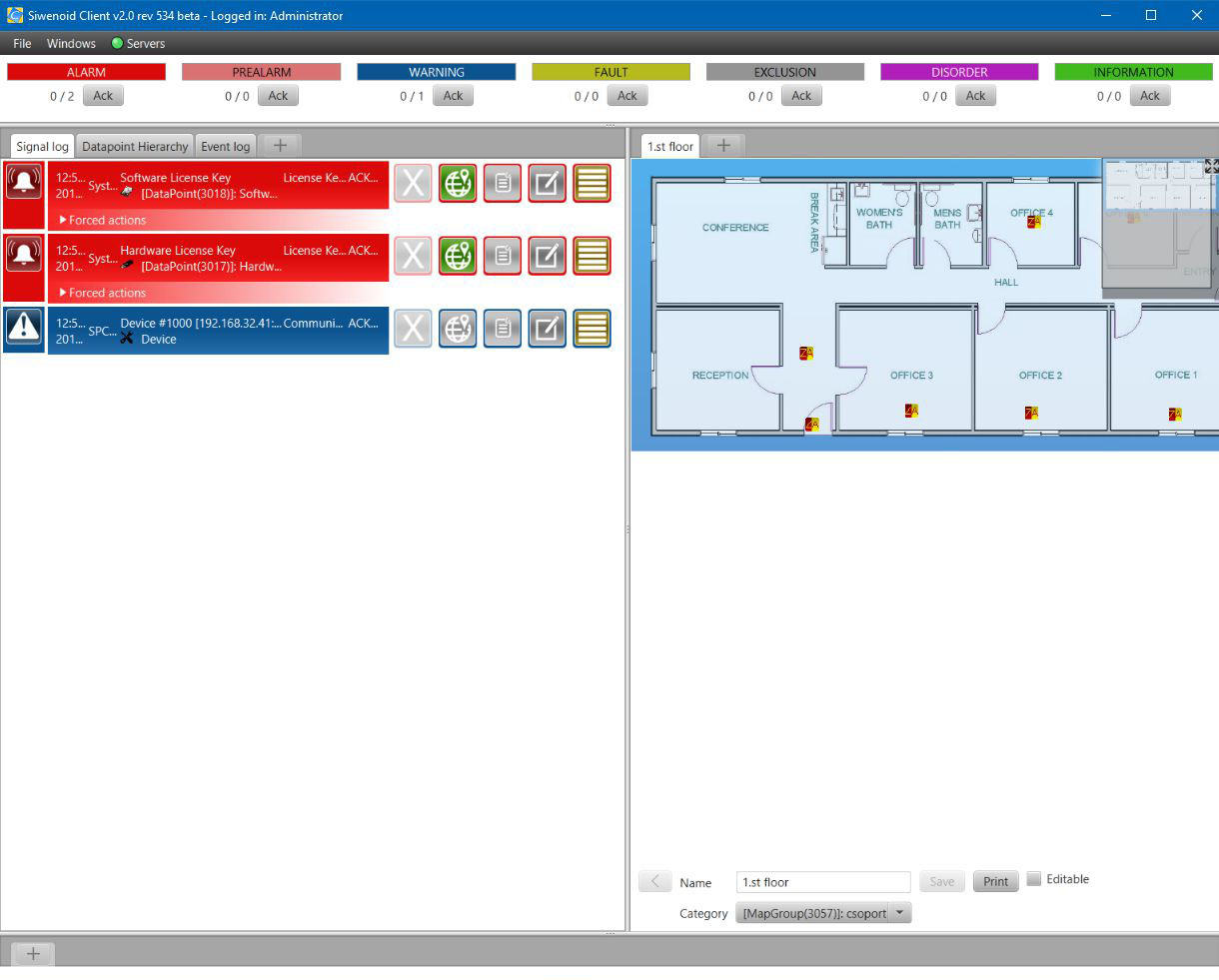

Flexible map handling
Maps can be assigned, uploaded (drag & drop) to the system.
Datapoints can be assigned to maps.
Layering: you can place the icons of smoke detectors on a layer and intrusion detection system’s datapoints to an other one – never get lost on crowded maps!
PNG, JPG background pictures. This provide the fastest rendering of maps. High resolution zoom & pan maps remain responsive.
